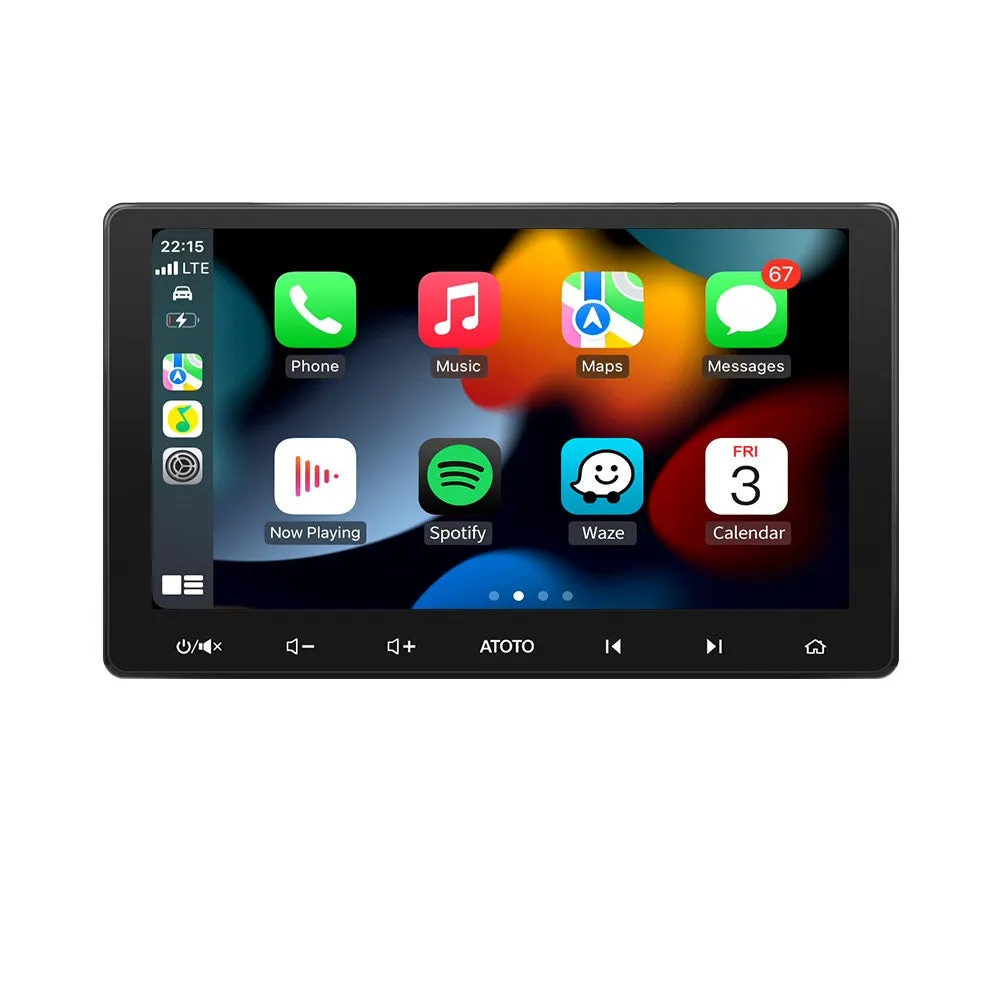

Car Stereo ATOTO F7 XE 10.1 Inch Double Din Wireless CarPlay & Android GPS

Product Information

• Product Version: F7 Extreme Edition (XE). Model: F7G211XE-N; Operating System: Linux 4.9.217; Mounting style: IAH10D (Integrated & Adaptive Head Unit with a 10.1-inch Display)

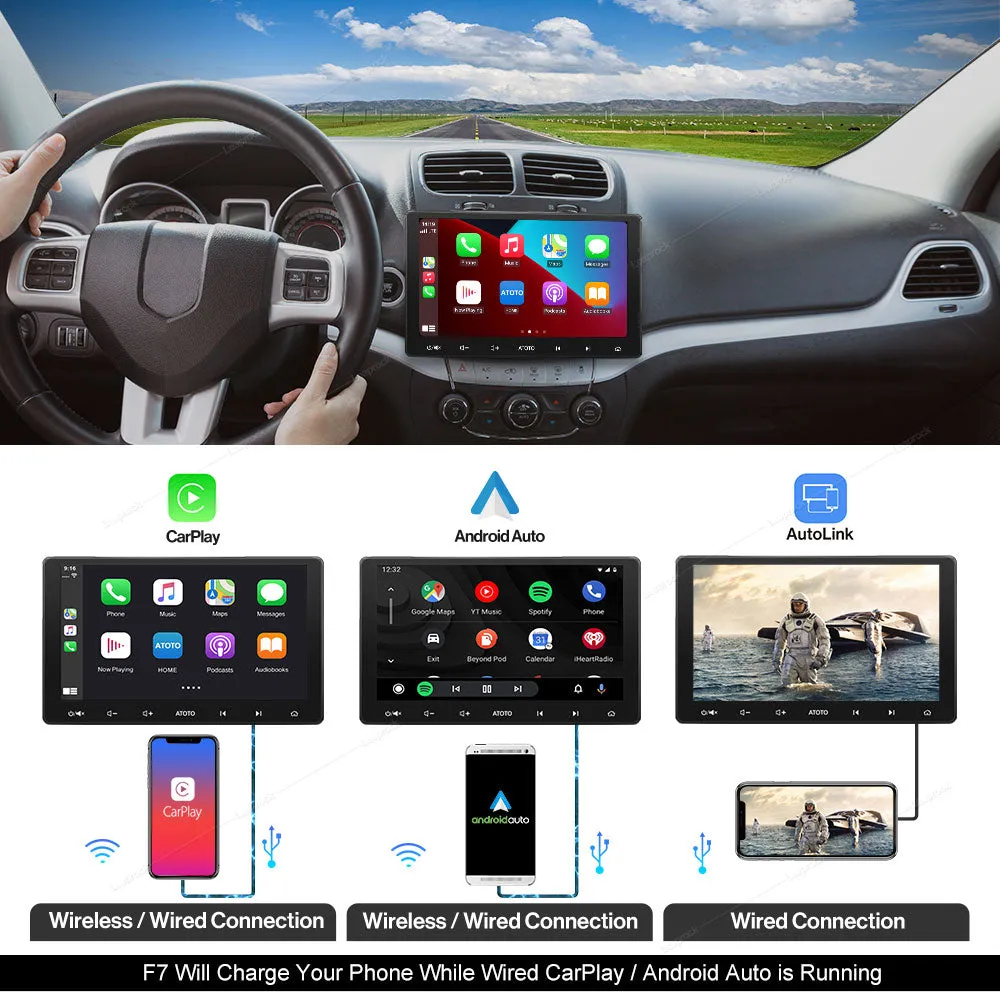

• Supports WIRELESS & wired CarPlay and WIRELESS & wired Android Auto (compatibility information is specified in the corresponding sections below) (IMPORTANT: For wired Android Auto/CarPlay connection, users should use the factory/original USB cable that came with the phone, non-manufacturer-made USB cables may lead to connection issues like a black screen, or an unstable connection.)

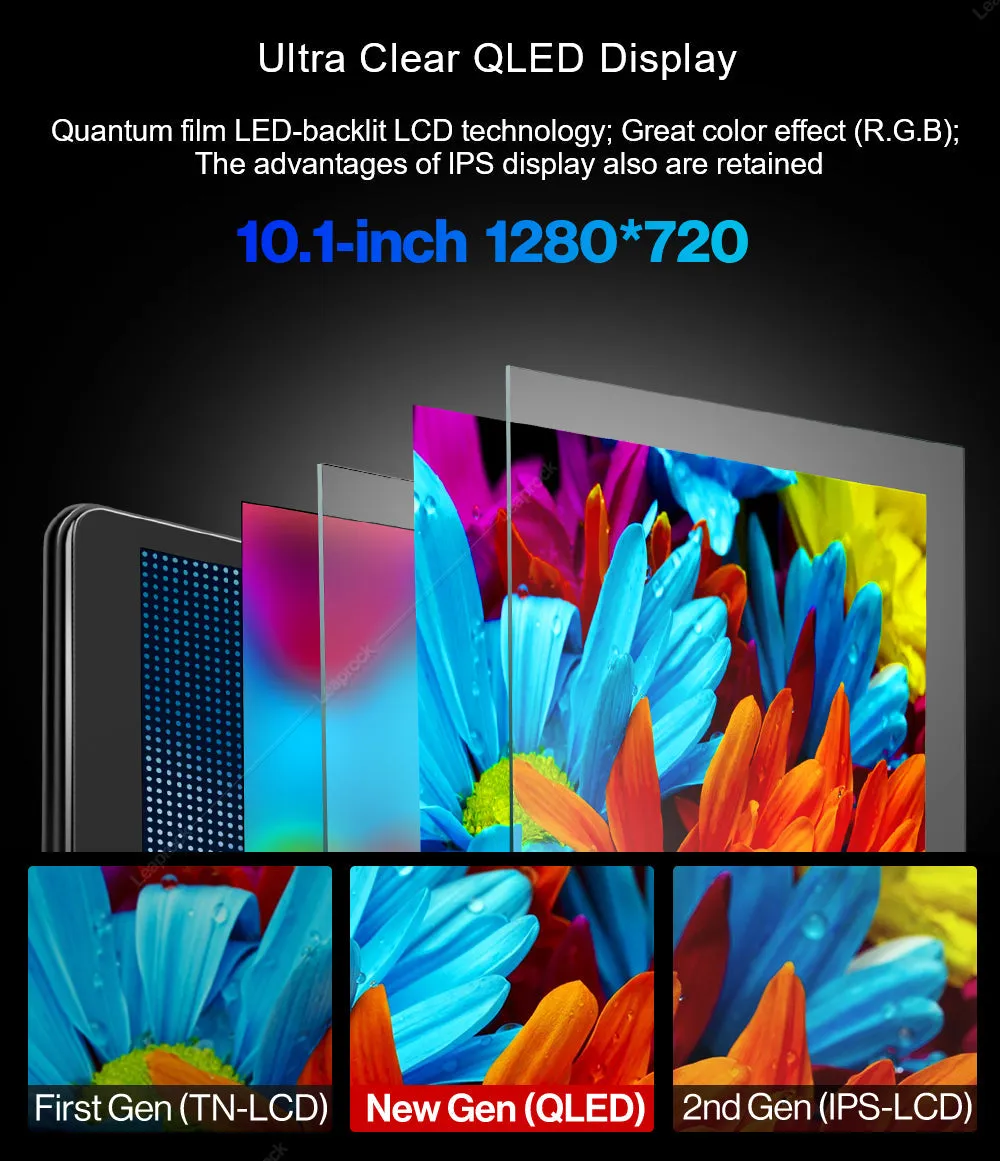

• Full HD 10.1" 1280*720 QLED display screen with a 178° full-viewing angle (brightness 600cd/m2); 5-Touch Capacitive Touchscreen
• SiriusXM ready (a SiriusXM Connect Vehicle Tuner and subscription are required)

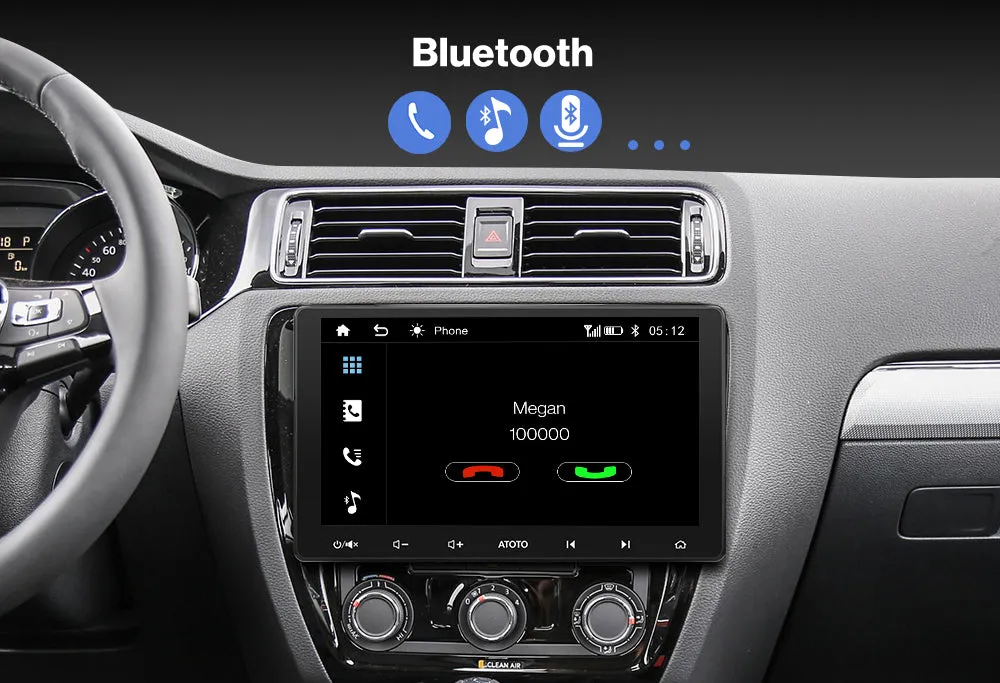

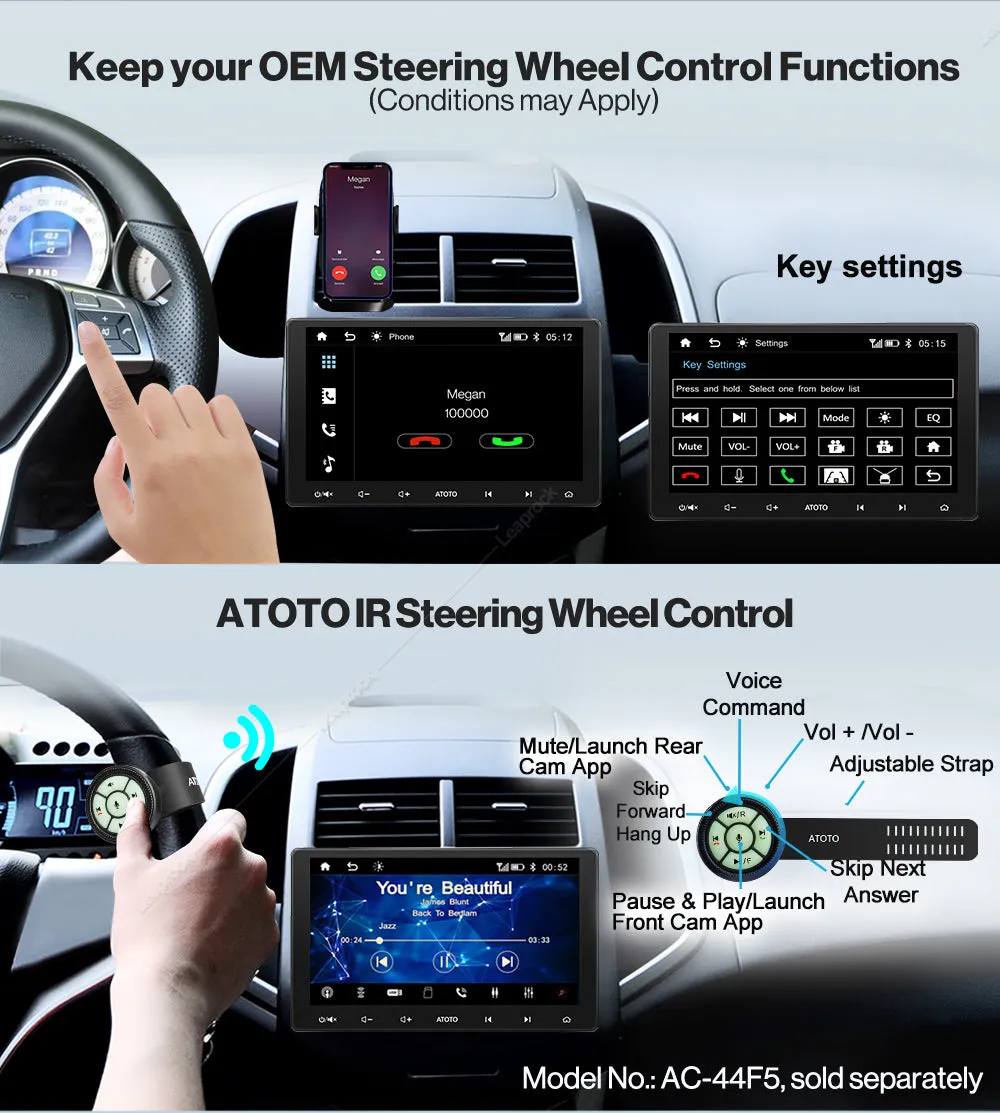

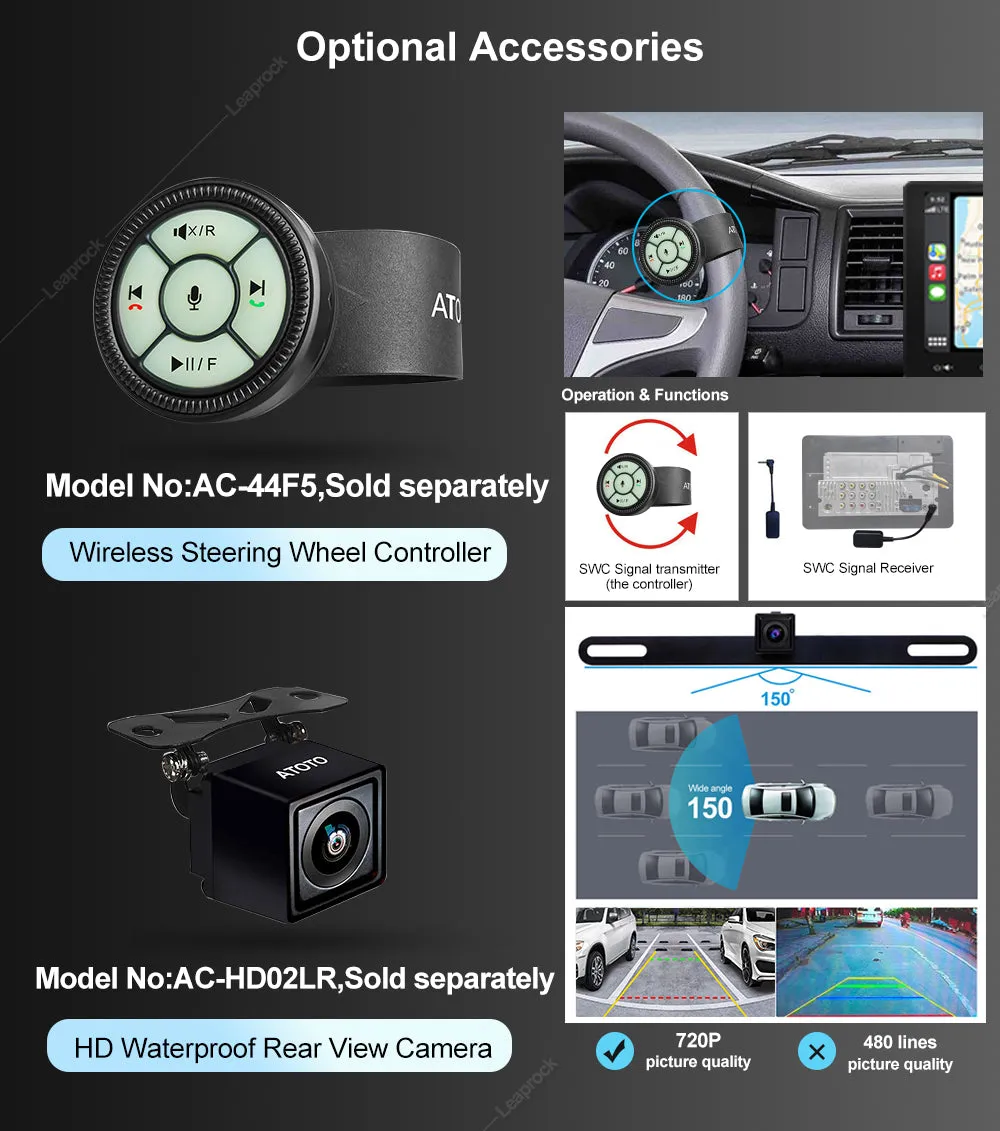

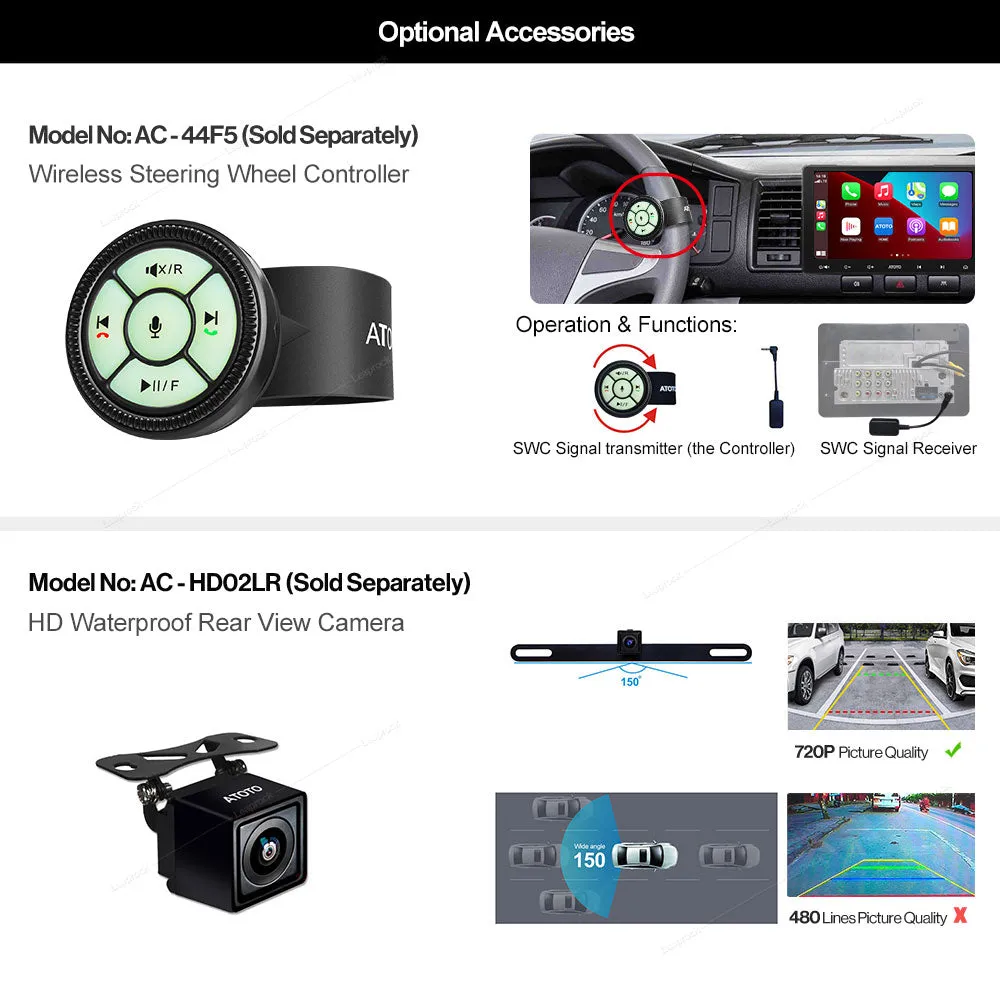

• Bluetooth 5.0, supports hands-free calls and streaming music; safer driving when you can answer calls/hang up, play/pause, switch tracks, adjust the volume, etc. on the car stereo, with the steering wheel controls, or with ATOTO AC-44F5 wireless IR remote; Radio tuner: Built-in FM/AM Radio Tuner with RBDS

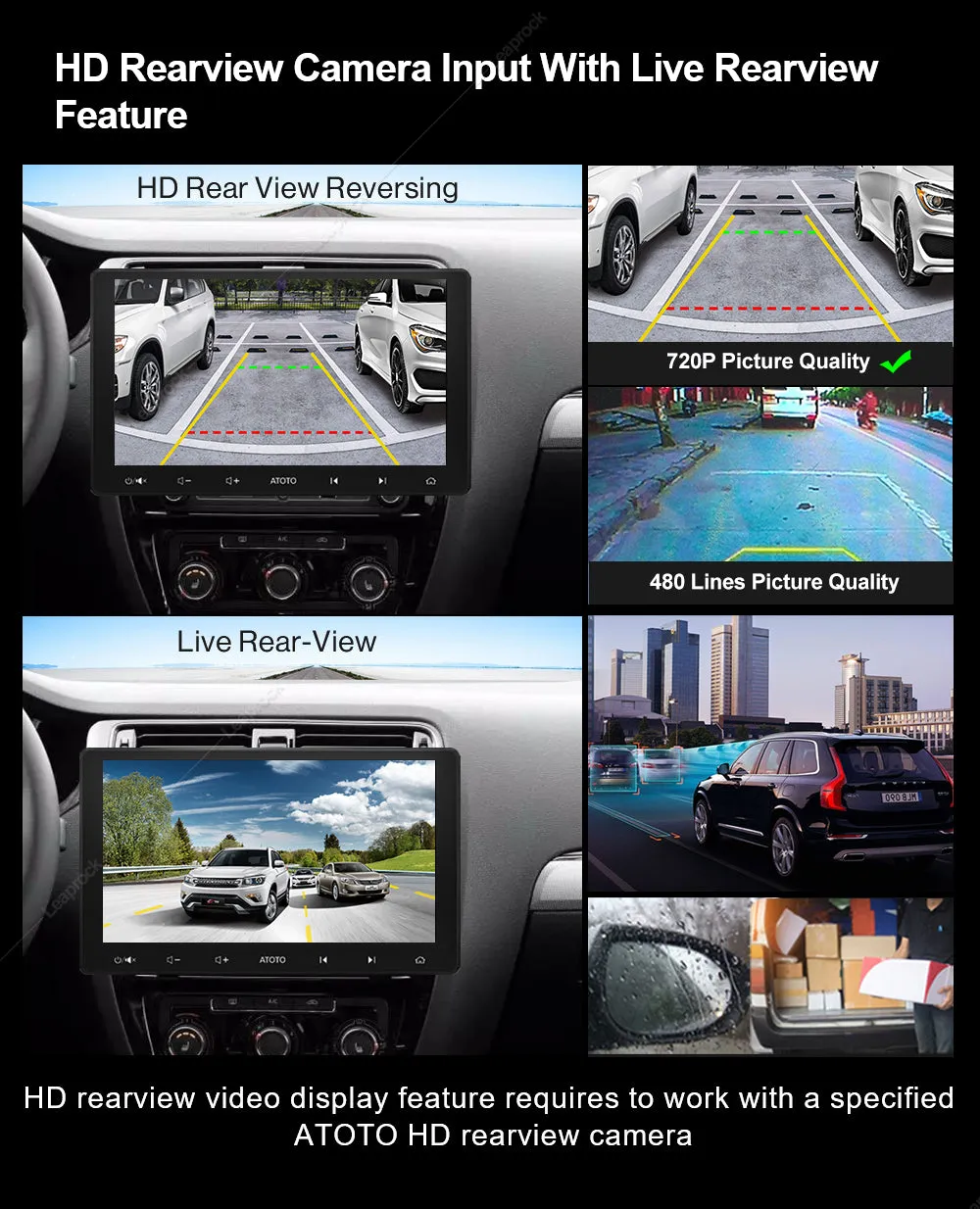

• HD 720P rearview video display with Live Rear-View (LRV) feature (ATOTO AC-HD02LR rear-view camera is required, sold separately)

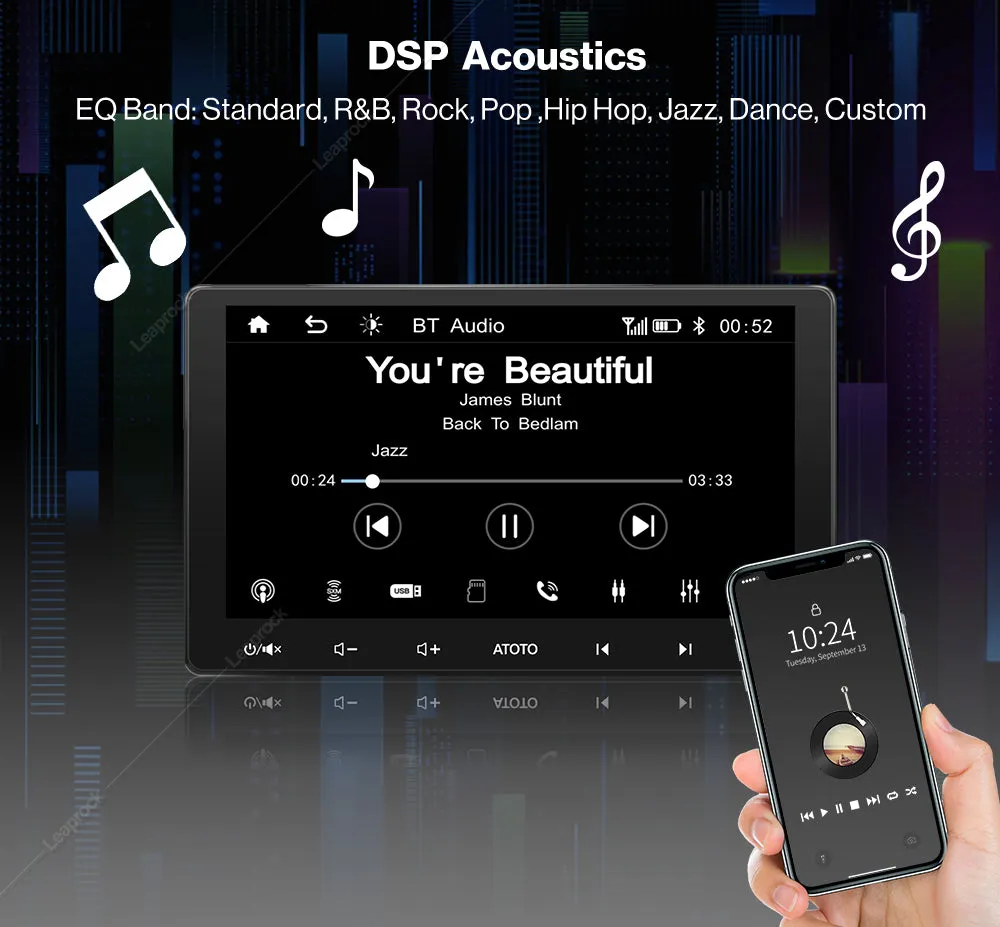

• Built-in pre-amplifier: max. 4*49W with RMS 4*29W (Vcc=14.4v, THD=10%); 10-band EQ with 7 presets
• GPS/Navigation: F7G211XE-N comes with a specific hardware solution to integrate iOS CarPlay or Android Auto into its system so that you can run iOS Maps or Google Maps/Waze on the big HD screen, as long as they are available on your phone
• Fast charging: powered by inner PMS firmware, F7G211XE-N can deliver power to smartphones faster (max. 1.5 A) than other car stereo brands (300mA - 500mA) while running wired CarPlay/Android Auto; data transmission & phone charging can be done simultaneously

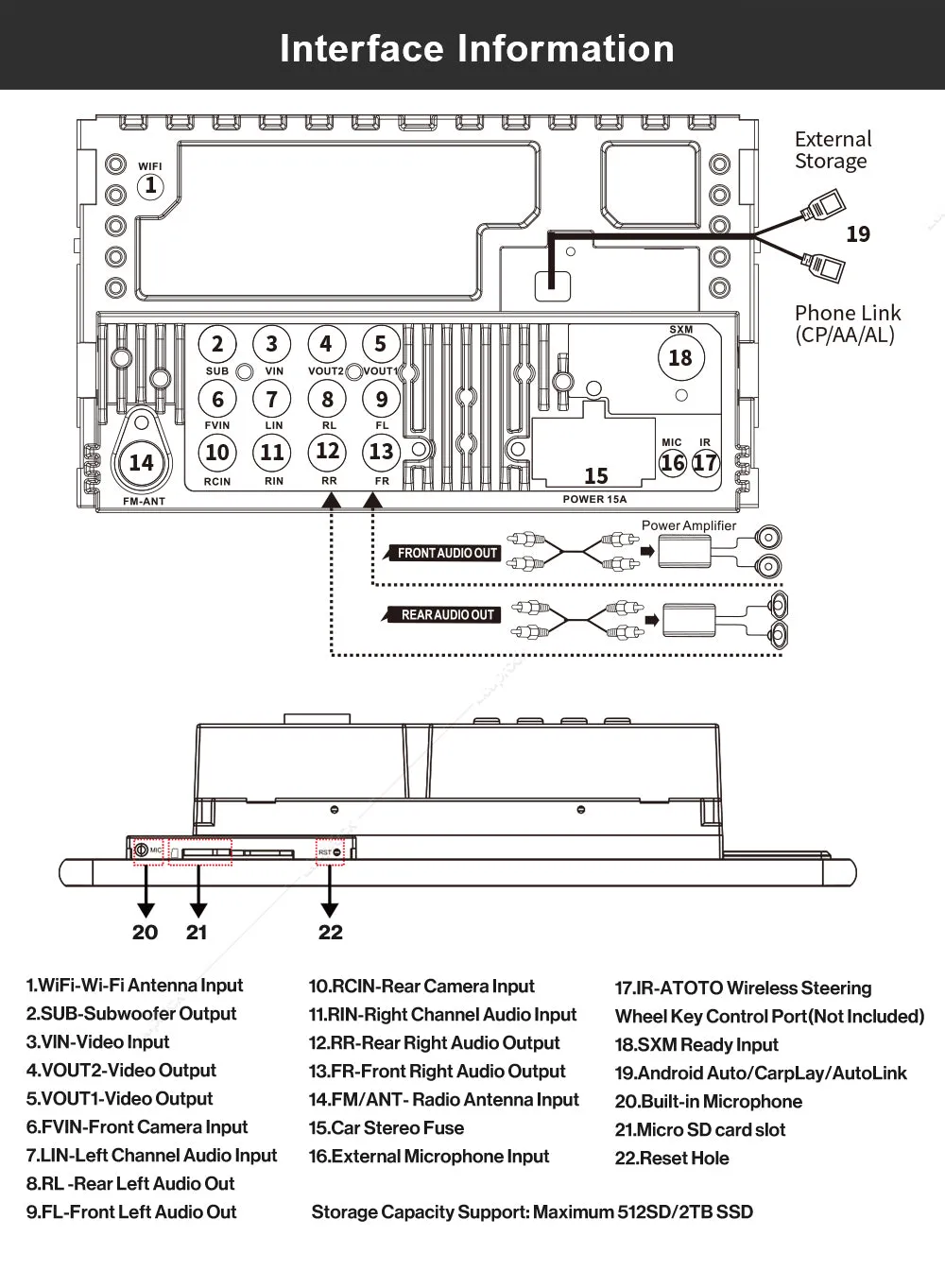

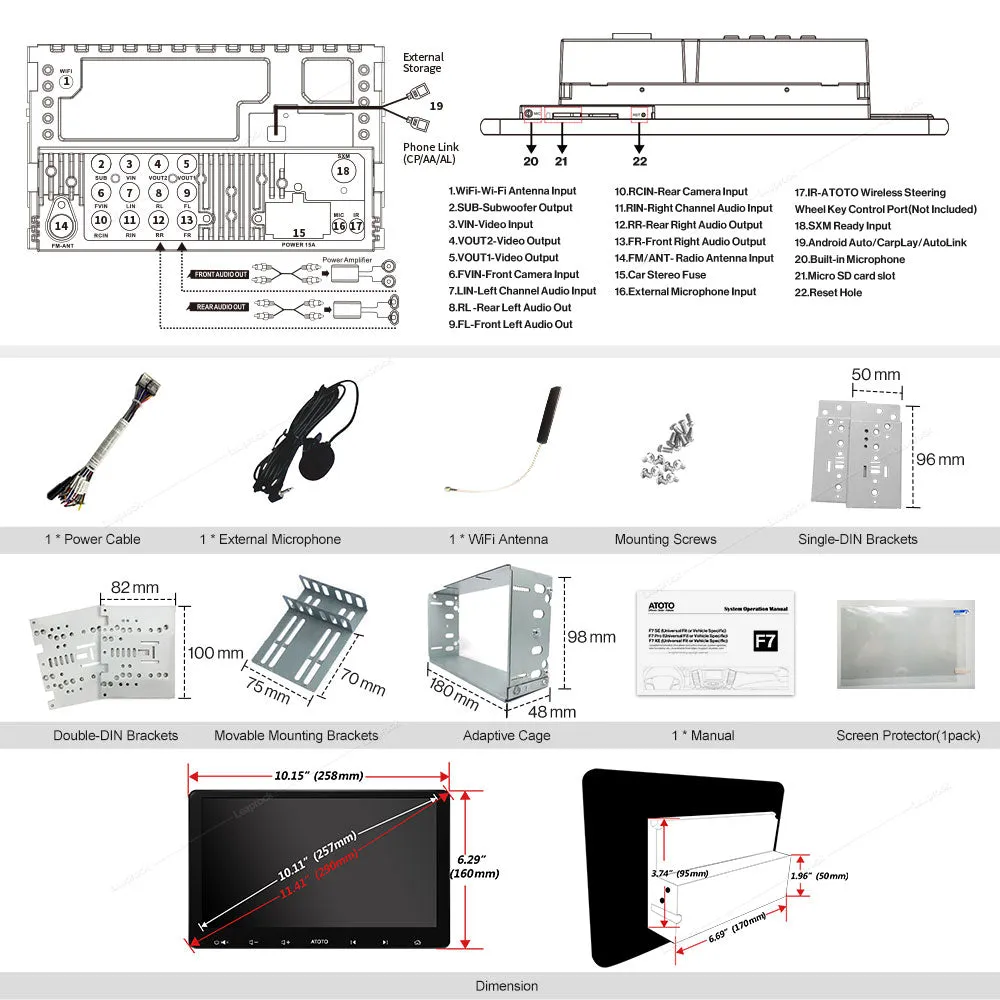

Inputs, Outputs & Slots

• 3 video inputs, Reversing Camera Input, AUX Audio/Video In & Front Camera Video In, can process 720P HD video signals. For reversing camera input, you can connect a specified ATOTO HD rearview camera to F7G211XE-N for 720P video display (most other car stereo brands can only process CVBS 480-600 lines video signals); For F7 XE head units, the specified rearview camera is AC-HD02LR (sold separately); AC-HD03LR is not compatible

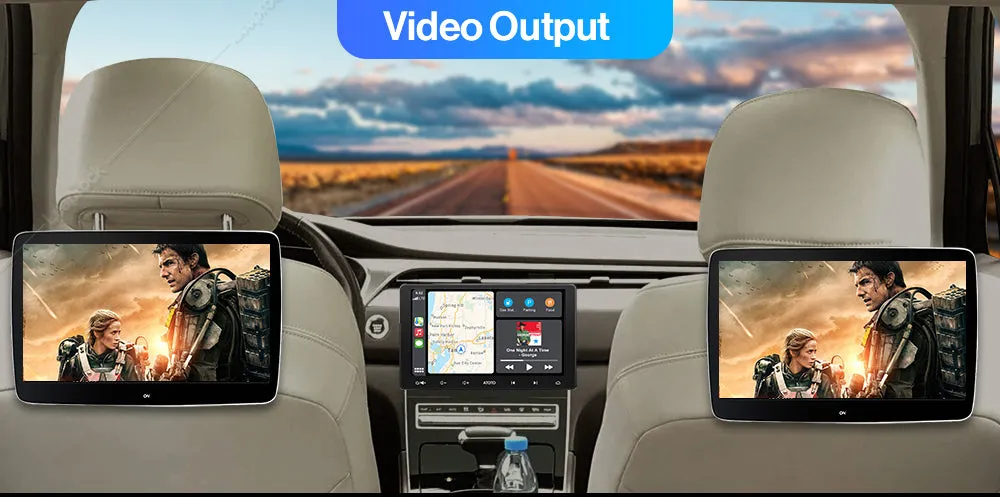

• 2 RCA Headrest Video Outputs; 4-CH RCA Audio Out (2v) for connecting to a factory/aftermarket amplifier; Separate Subwoofer Out (0.8 v)

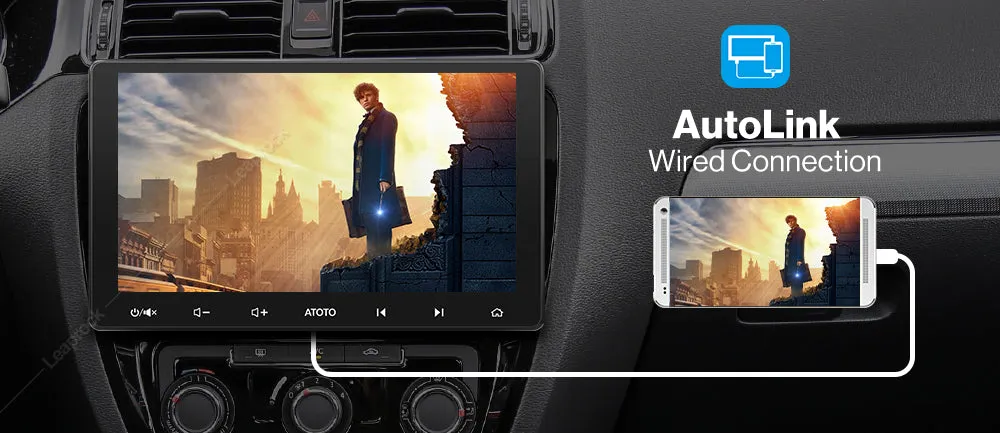

• One Micro SD slot - to store media files, up to 512GB; 2 USB interfaces - one for phone connection (CarPlayP/Android Auto/AutoLink) and one for external storage devices and media playback. The latter reads up to 2TB SSD. Both SD & SSD must be in FAT32 or NTFS format

Vehicle Fit:

• F7G211XE-N is a universal double DIN head unit. It can be installed in vehicles that have a standard double DIN dashboard opening. Plus, with YO-FUNG vehicle-specific installation dash kits (wiring harness, data interface, mounting kit), it offers a more integrated & OEM Factory-style look after installation. Over 200 vehicle models have the opportunity to complete the OEM factory-style installation.
• On few vehicles, the edges of the 10.1-in display part may block air vents, the emergency switch, or other buttons located around the double-DIN opening, resulting in inconvenience. Be sure yours won't have such a problem, or that you are fine with it.
• Extra accessories may be required to finish installation in a specific vehicle (not provided in the package). It is the buyer's responsibility to prepare them (if applicable). They may include (but are not limited to) a dash frame kit, a wiring harness, a radio antenna adapter, a CANBUS data interface, etc.
