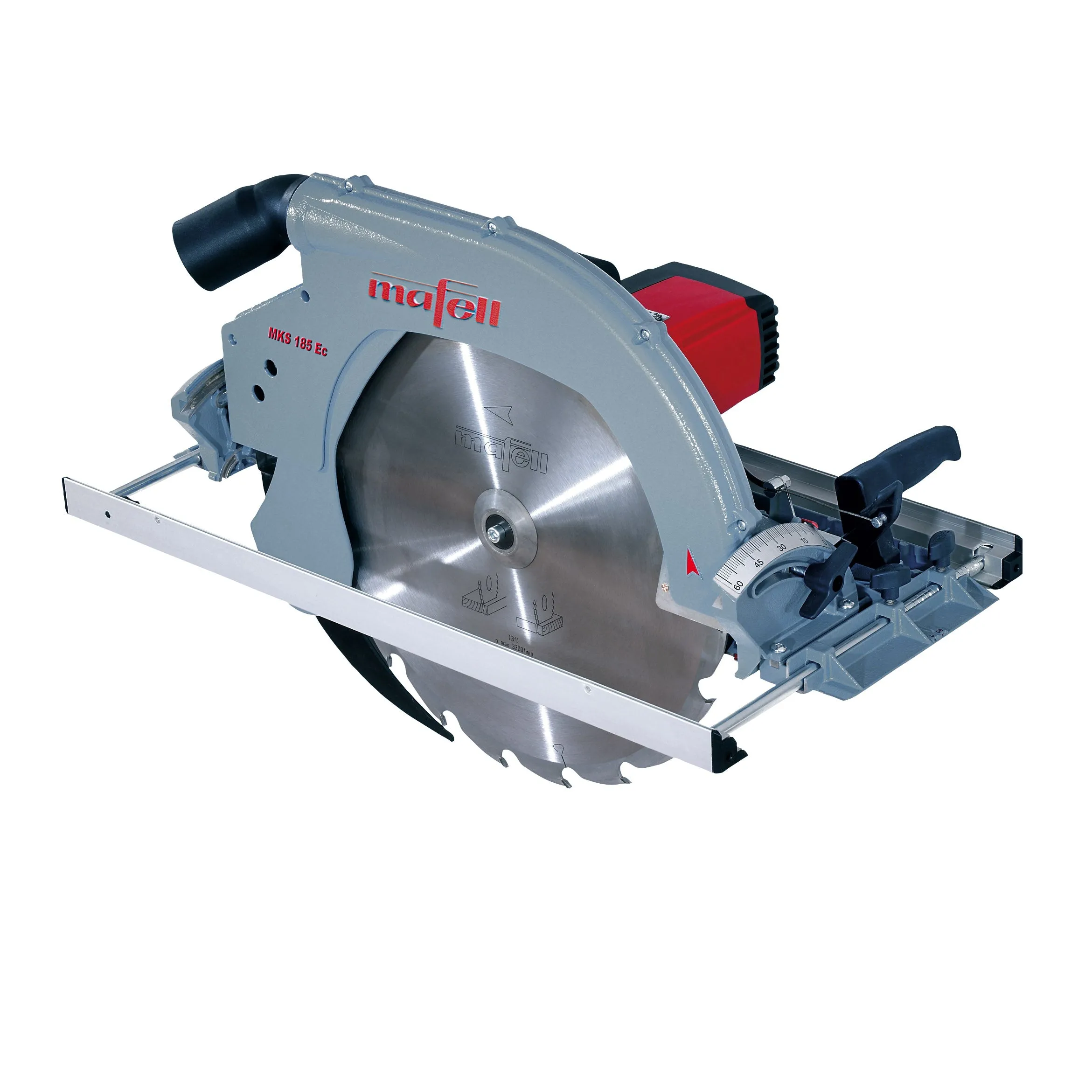

The Mafell MKS 185Ec carpenter's portable circular saw uses ultra-modern die-cast magnesium alloys to achieve an extraordinary weight/performance ratio. Weighing only 16.1kg, the MKS 185Ec accurately and powerfully makes 185mm cuts like no other saws in its class.

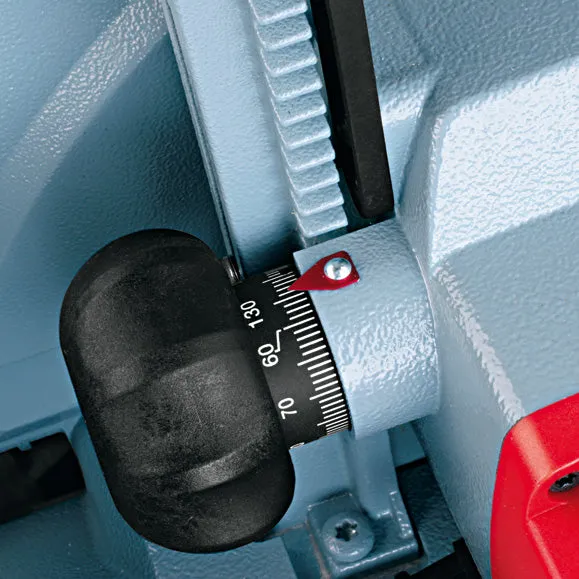

The cutting depth can be adjusted quickly via a precise hand wheel and an easy to read scale. And this high quality saw is equipped with intelligent control electronics, which ensures a smooth start up and constant speed under load using a powerful 240 V motor.

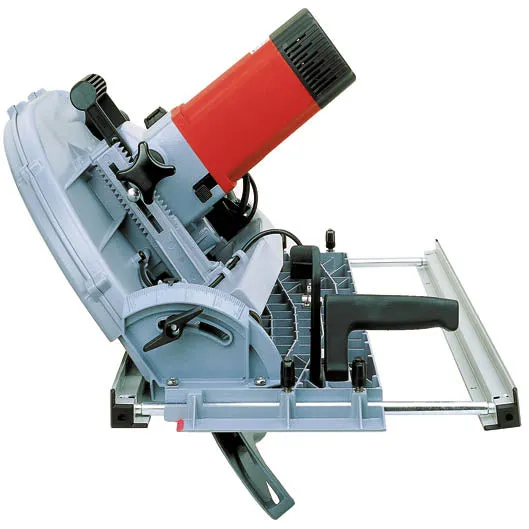

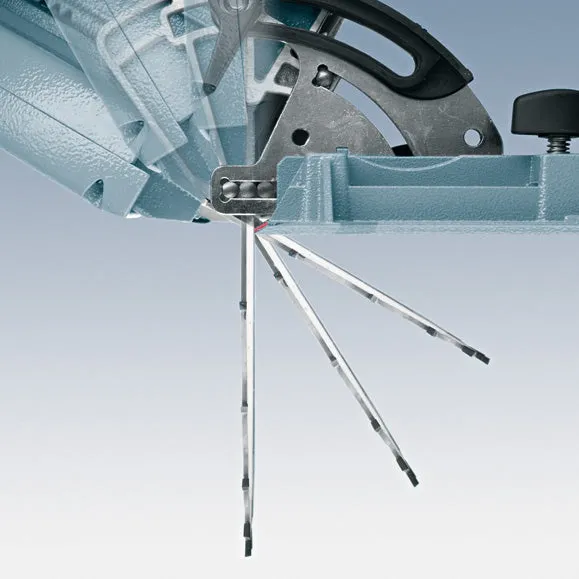

Like all Mafell portable circular saws, the MKS 185Ec also fits onto the Mafell Guide Rail System. It cuts to 60° angles and then returns to the 90° position without fine-tuning or re-squaring. Mafell saws are lightweight due to their sturdy magnesium bases, and combine a superior blade guard and dust removal system.
Specifications
Cutting depth | 105 - 185 mm |
Cutting depth at 45° | 74 - 131 mm |
Cutting depth at 60° | 53 - 93 mm |
Tilt range | 0 - 60 ° |
Nominal power input | 3000 W |
Weight | 16,1 kg |
Universal motor | 230 V / 50 Hz |
- In a class of its own: heavy-duty 3000 Watt (3.8 hp) motor for extreme 185 mm (7 5/16 in.) cutting performance!
- The saw handling and behavior are refined by smooth starting, constant speeds under load, speed reduction and overload protection.
- The easy-to-use stop system, the low noise emission and the remote-controlled retractable knife guard make your work much easier.
- The very smooth-running height adjustment with its clearly legible scale and an effective brake also ensure perfect cutting results and optimum operator safety.
Delivery specification
- 1 Allen key 6 mm; Ref. No. 093081
- 1 TCT saw blade 450 x 2.5/4.2 x 30 mm, AT, 20 teeth
- 1 Parallel guide fence
- 1 Mains cable 10 m
- boxed
