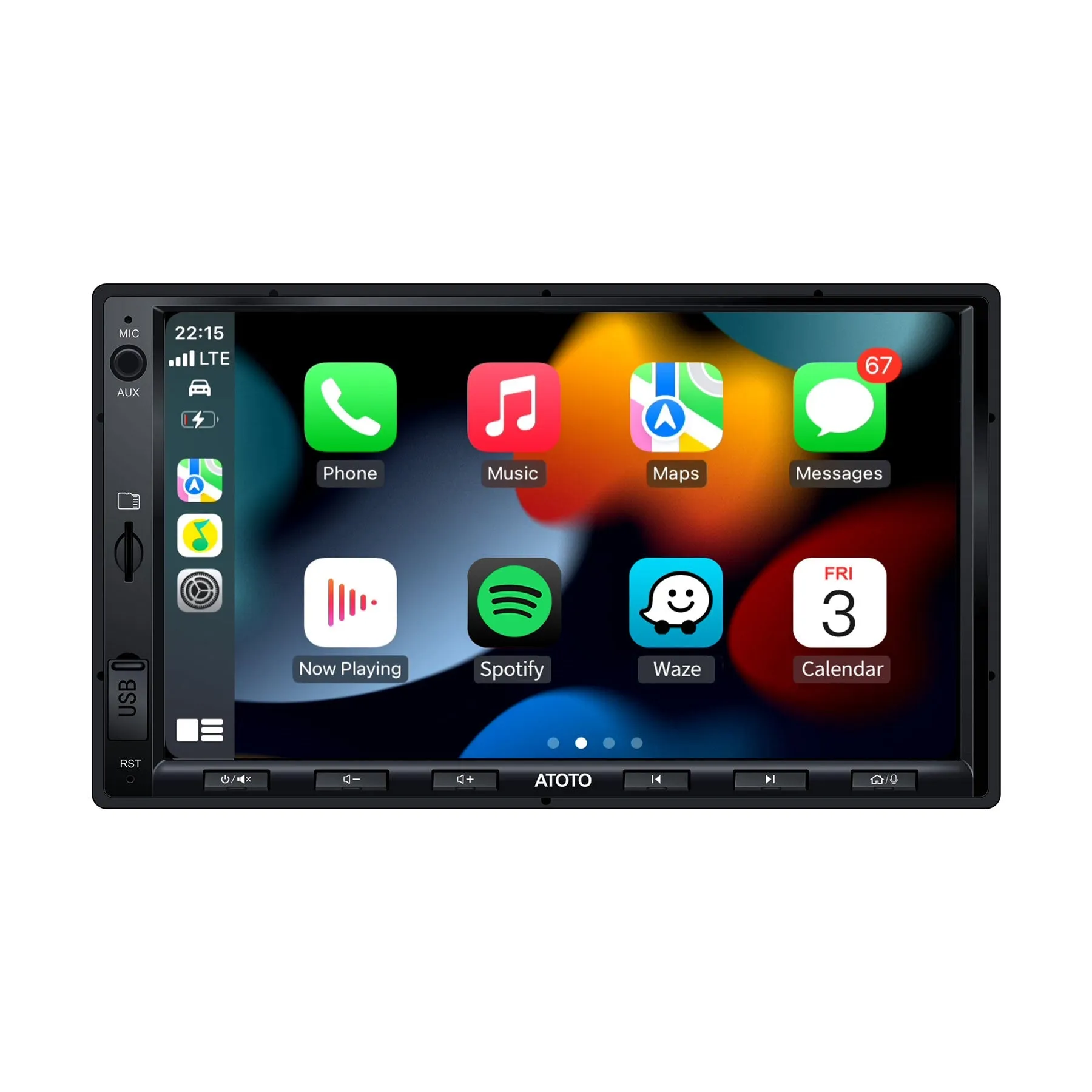

Premium Car Stereo ATOTO F7 XE Wireless CarPlay & Android Auto Bluetooth QLED

Product Information

• Product Version: F7 Extreme Edition (XE). Model: F7G2A7XE-N; Operating System: Linux 4.9.217; Mounting style: UDH07D (Universal Double DIN with a 7-inch Display)

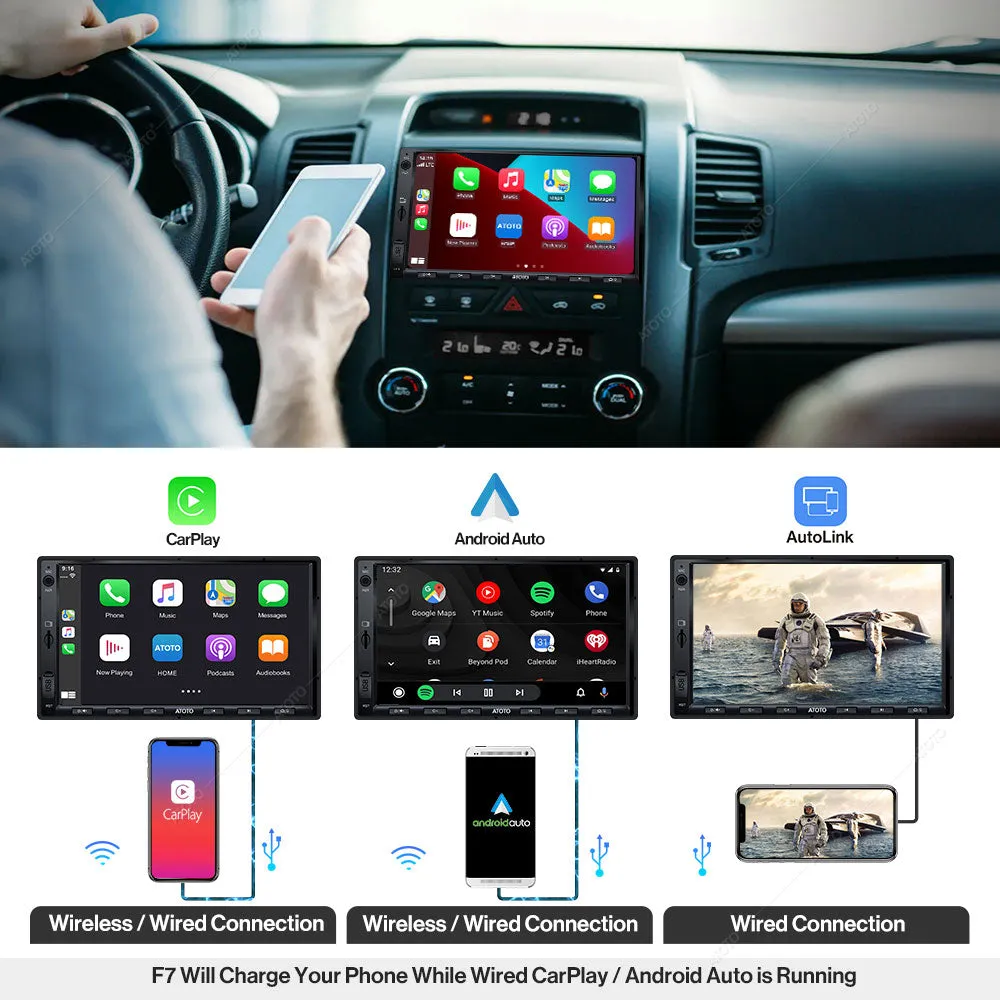

• Supports WIRELESS & wired CarPlay and WIRELESS & wired Android Auto (compatibility information is specified in the corresponding sections below) (IMPORTANT: For wired Android Auto/CarPlay connection, users should use the factory/original USB cable that came with the phone, non-manufacturer-made USB cables may lead to connection issues like a black screen, or an unstable connection.)

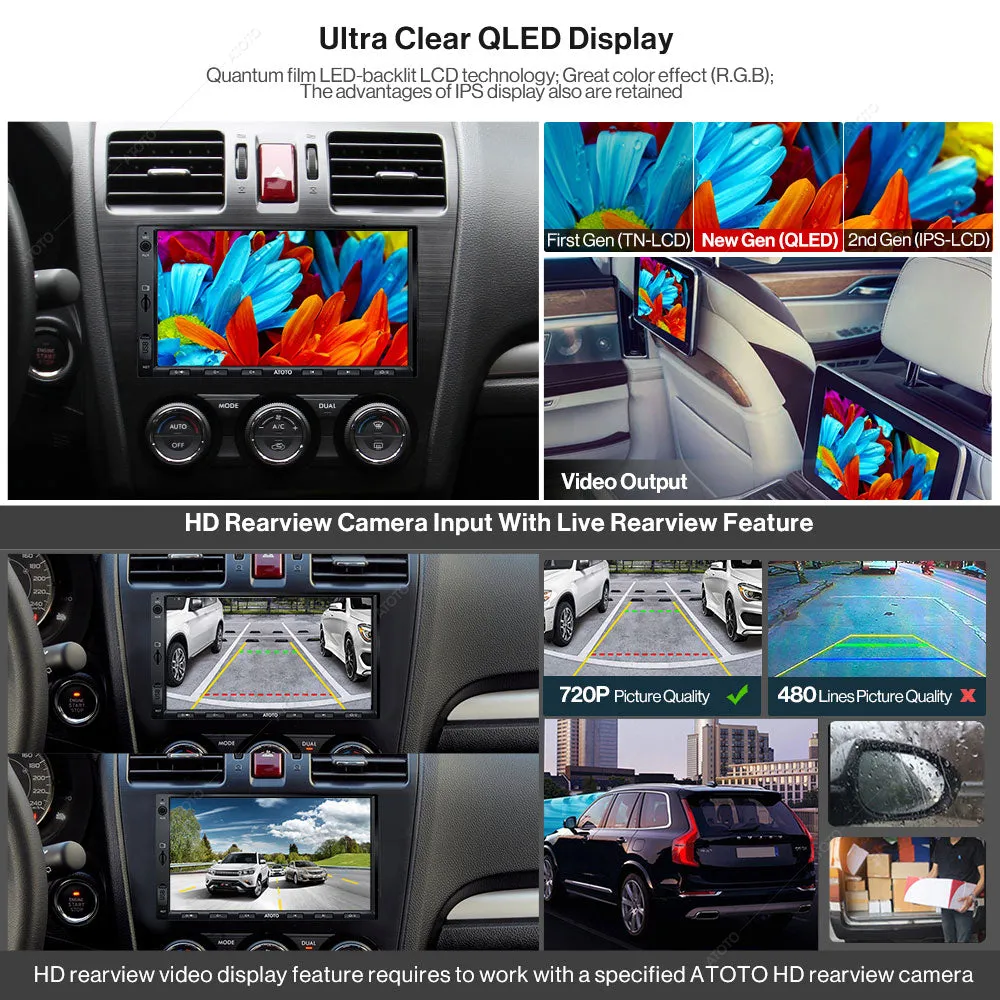

• Full HD 7" 1024*600 QLED display screen with a 178° full-viewing angle (brightness 600cd/m2); 5-Touch Capacitive Touchscreen
• SiriusXM ready (a SiriusXM Connect Vehicle Tuner and subscription are required)

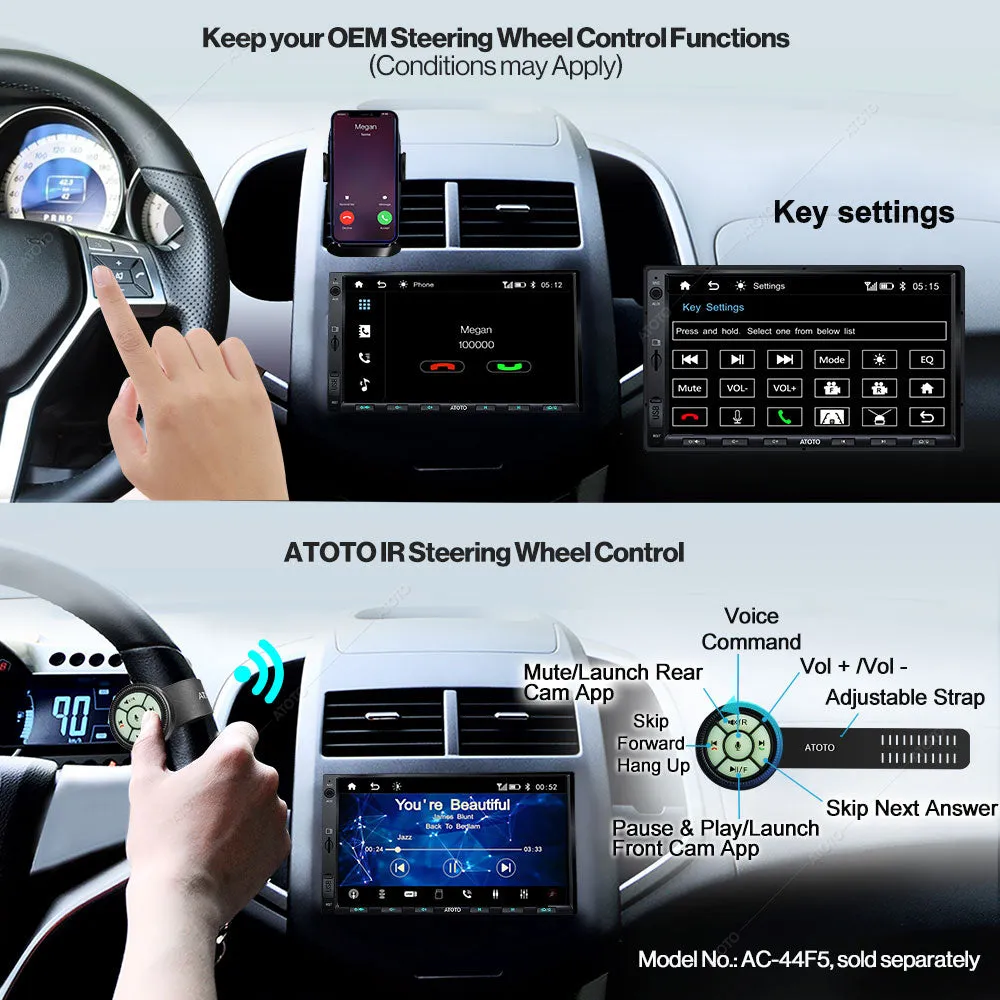

• Bluetooth 5.0, supports hands-free calls and streaming music; safer driving when you can answer calls/hang up, play/pause, switch tracks, adjust the volume, etc. on the head unit, with the steering wheel controls, or with ATOTO AC-44F5 wireless IR remote; Radio tuner: Built-in FM/AM Radio Tuner with RBDS
• HD 720P rearview video display with Live Rear-View (LRV) feature (ATOTO AC-HD02LR rearview camera is required, sold separately)
• Built-in pre-amplifier: max. 4*49W with RMS 4*29W (Vcc=14.4v, THD=10%); 10-band EQ with 7 presets
• GPS/Navigation: F7G2A7XE-N comes with a specific hardware solution to integrate iOS CarPlay or Android Auto into its system so that you can run iOS Maps or Google Maps/Waze on the big HD screen, as long as they are available on your phone
• Fast charging: powered by inner PMS firmware, F7G2A7XE-N can deliver power to smartphones faster (max. 1.5 A) than other head unit brands (300mA - 500mA) while running wired CarPlay/Android Auto; data transmission & phone charging can be done simultaneously
• 6 physical buttons with 8 functions in total enable you to perform simple tasks such as turning down the volume during driving with ease

Inputs, Outputs & Slots

• 3 video inputs, Reversing Camera Input, AUX Audio/Video In & Front Camera Video In, can process 720P HD video signals. For reversing camera input, you can connect a specified ATOTO HD rearview camera to F7G2A7XE-N for 720P video display (most other head unit brands can only process CVBS 480-600 lines video signals); For F7 XE head units, the specified rearview camera is AC-HD02LR (sold separately); AC-HD03LR is not compatible
• 2 RCA Headrest Video Outputs; 4-CH RCA Audio Out (2v) for connecting to a factory/aftermarket amplifier; Separate Subwoofer Out (0.8 v)
• One Micro SD slot - to store media files, up to 512GB; 2 USB interfaces - one for phone connection (CarPlayP/Android Auto/AutoLink) and one for external storage devices and media playback. The latter reads up to 2TB SSD. Both SD & SSD must be in FAT32 or NTFS format

Vehicle Fit:

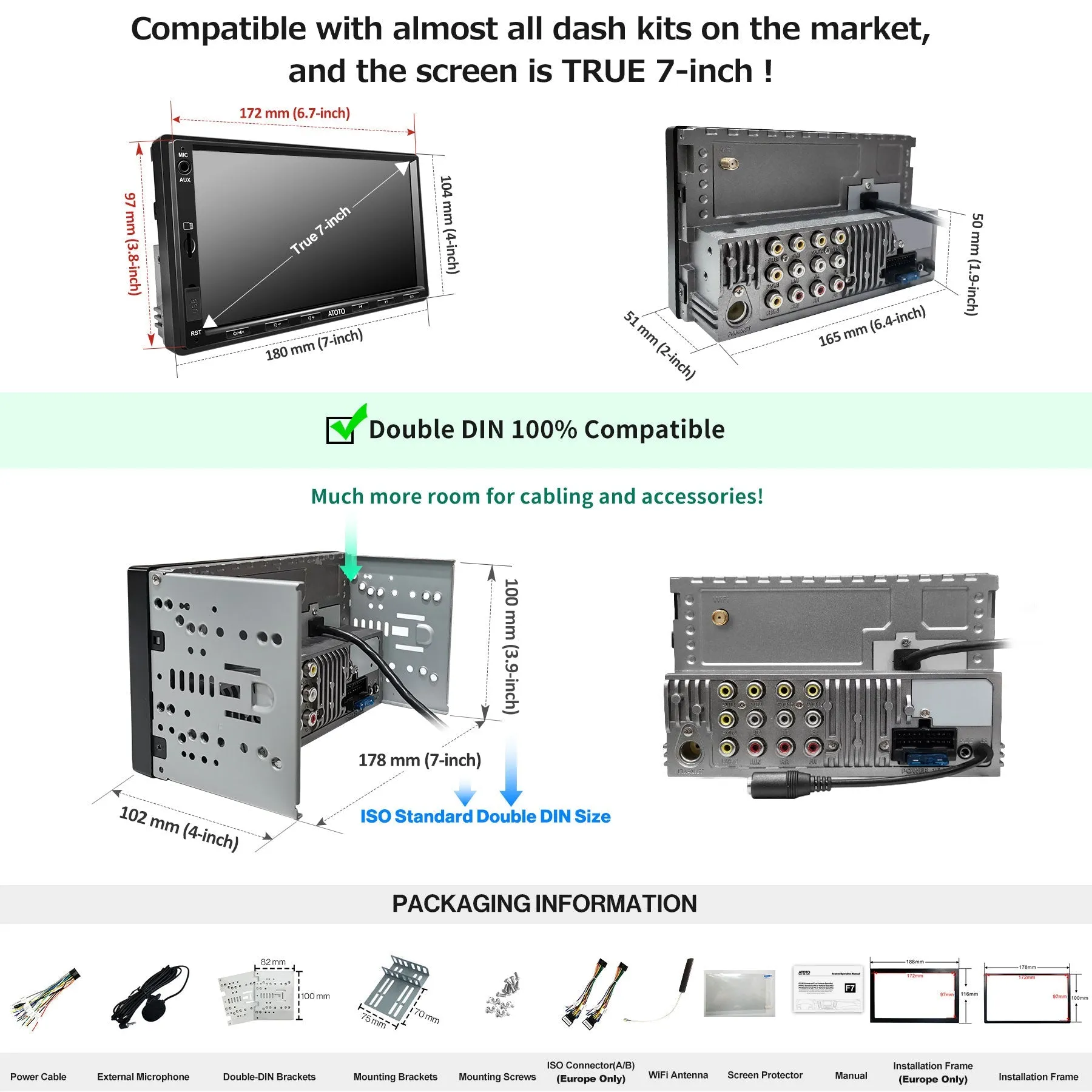

• True 7-inch screen. Typically, North American dashboard mounting frame suppliers (Metra, Scosche, PAC, etc.) provide double DIN mounting frames with a 174 mm*98 mm opening, limiting the screen size of aftermarket head units to 6.75-inch or smaller (false 7-inch). ATOTO is the first manufacturer to introduce true 7-inch Android head units with a minimal front panel size of 172 mm*97 mm (fitting the mounting frames commonly available). If needed, an extra frame adapter is also included to expand it to 178 mm*101.5 mm.
• The ISO Standard chassis size for double DIN head units is 178 mm*100 mm. In the case of the frontal faceplate, however, there is no such standard. As a result, many users have issues mounting head units from other brands with dash kits commonly available on the  market. F7G2A7XE-N, on the other hand, with its faceplate size of 172 mm*97 mm, is compatible with products from most dash kit brands (Metra, Scosche, PAC, etc.).
• The chassis is only 50-mm deep, shorter than the typical depth. Therefore, there is a larger space for cabling and other accessories.
• As this is a universal fit head unit, extra accessories may be required to finish installation in a specific vehicle (not provided in the package). It is the buyer's responsibility to prepare them (if applicable). They may include (but are not limited to) a dash frame kit, a wiring harness, a radio antenna adapter, a data interface, etc.

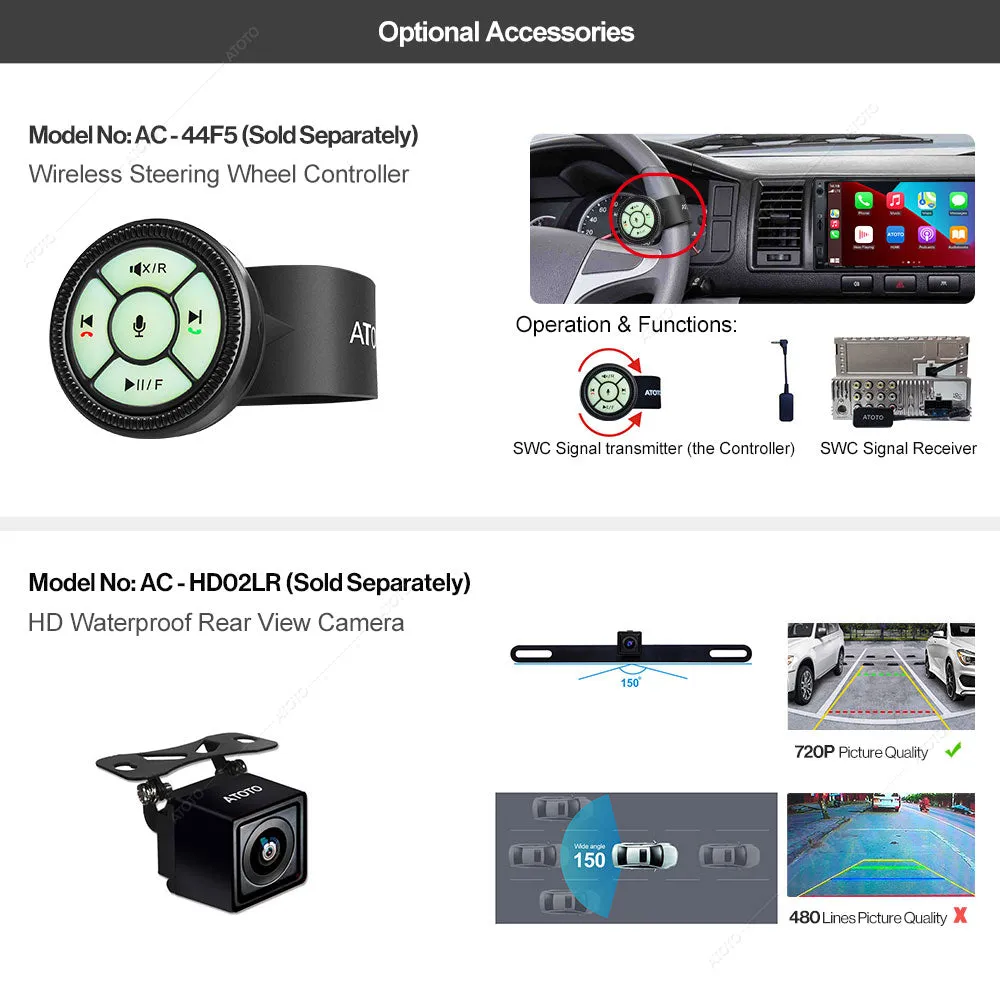

Notice: Optional parts for working with ATOTO F7 are sold separately: 1. ATOTO AC-44F5 Steering wheel control IR Remote; 2. ATOTO AC-HD02LR Live Rearview Camera (F7 is NOT compatible with AC-HD03LR)
